byteSENSI-L

Overview

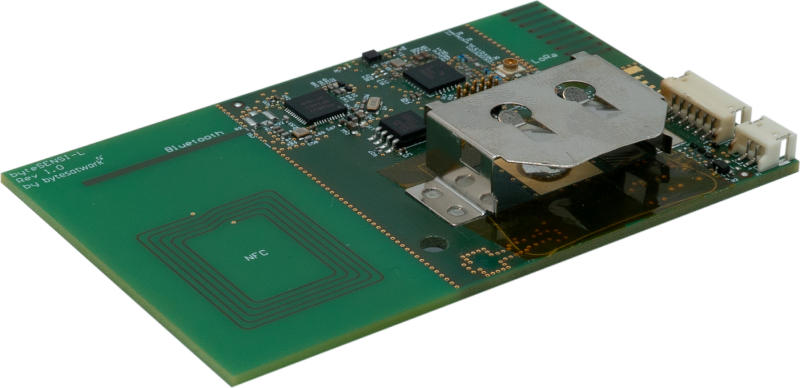

The byteSENSI-L is a fun LoRa device based on nRF52 MCU that integrates many sensors.

Hardware

Supported Features

Interface	Controller	Driver/Component
CLOCK	on-chip	clock_control
FLASH	on-chip	flash
GPIO	on-chip	gpio
I2C(M)	on-chip	i2c
MPU	on-chip	arch/arm
NVIC	on-chip	arch/arm
RADIO	on-chip	Bluetooth
RADIO	Semtech	LoRa
RTC	on-chip	system clock
RTT	Segger	console
WDT	on-chip	watchdog

Connections and IOs

External Connectors

External Supply @ X1

PIN #	Signal Name	Function
1	VBAT	Power input instead of CR2477 battery
2	GND	Ground

Programming Connector @SL1

PIN #	Signal Name
1	VBAT
2	SWDIO
3	GND
4	SWDCLK
5	GND
6	NC (SWO)
7	NC (Key)
8	NC
9	GND
10	nReset

I2C Sensor @X3

PIN #	Signal Name	Function
1	VBAT	Power out
2	SCL	I2C clock at P0.15
3	SDA	I2C data at P0.16
4	INT	Interrupt at P0.13
5	I2C_ADDR	tied to VBAT
6	GND	Ground

One Wire Sensor @X2

PIN #	Signal Name	Function
1	VDD	4V8
2	IO	One Wire
3	GND	Ground

External BLE Antenna @ J1

External LoRa Antenna @ J2

External GPS Antenna @ J3

Programming and Debugging

Flashing

The byteSENSI-L board can be flashed with the SEGGER JLink programmer. You can build the following samples as demo application:

1. Build the Hello World sample:

$ west build -b bytesensi_l samples/hello_world
$ west flash

2. Build the LPS22HB: Temperature and Pressure Monitor sample:

$ west build -b bytesensi_l samples/sensor/lps22hb
$ west flash

3. Build the TI_TMP116 Sample sample:

$ west build -b bytesensi_l samples/sensor/tmp116
$ west flash

4. Build the APDS9960 RGB, Ambient Light, Gesture Sensor sample:

$ west build -b bytesensi_l samples/sensor/apds9960
$ west flash

5. Build the CCS811 Indoor Air Quality Sensor sample:

$ west build -b bytesensi_l samples/sensor/ccs811
$ west flash

6. Build the LoRa samples:

Using two byteSENSI-L, you can run the LoRa send and receive demo:

$ west build -b bytesensi_l samples/drivers/lora/receive
$ west flash

$ west build -b bytesensi_l samples/drivers/lora/send
$ west flash

7. Build the soc-flash-nrf sample:

$ west build -b bytesensi_l samples/drivers/soc_flash_nrf
$ west flash

8. Build the Bluetooth samples:

Most of the bluetooth samples should work out of the box, for example, building the Bluetooth: Peripheral HIDs sample:

$ west build -b bytesensi_l samples/bluetooth/peripheral_hids
$ west flash

Debugging

Debugging your application can be done with west debug:

$ west debug

Serial console

The byteSENSI-L board only uses Segger RTT console for providing serial console. There is no physical serial port available.
